1. Achieving high productivity / high image quality

46% faster printing speed than a conventional model in Draft mode! ^*

Maximum speed mode: 143m²/h; Draft mode: 73m²/h

Even in Draft mode, the output speed is approximately 1.4 times faster than conventional Mimaki printers, and the excellent printing technology enables even and uniform output of dark color prints during low passes. TS330-1800 combines high production and high quality to provide the printing quality meeting the requirements of the textile market.
*Comparison TS330-1800 (print speed 73m²/h: 600×600 dpi 2P Bi) and TS55-1800 (print speed 50m²/h: 600×600 dpi 2P) at equivalent image quality

---

---

Introduction of new ink dispensing technology for high image quality

---

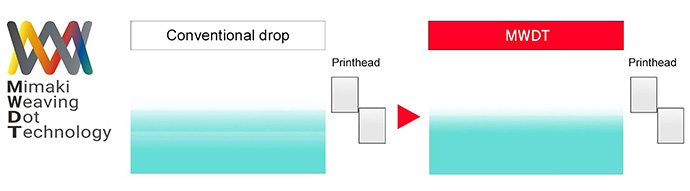

New Drop Technology, the "Mimaki Weaving Dot Technology (MWDT)"

A new ejection control technology reducing the unevenness and smearing of the ink, achieving higher image quality, with better solid coloring and smoother images than ever before.

---

---

Two options for low running costs in production

---

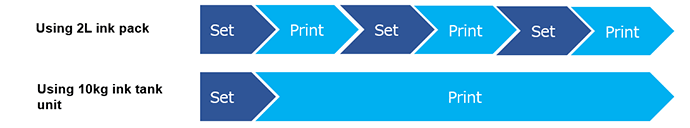

10 kg ink tank supply unit 2

10 kg Sb411 ink (B/M/Y/K) ink-tanks newly available*. Enables long period continuous output, such as in all night operations by mounting replacement ink-tanks on the optional 10 kg ink-tank supply unit (sold separately).
The tank achieves significant reductions in running cost and operation time over the standard 2 liter packs.
*Lbl/Lm/Lk/Vi/Or/Fp/Fy inks are available only in 2L ink-packs and can be used in parallel with the 10kg ink-tanks

---

---

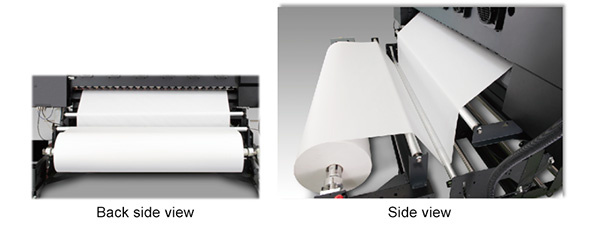

Mini jumbo roll unit

---

The use of long mini jumbo roll transfer paper* can further reduce running costs.
This reduces the downtime for media replacement as well as the burden on operators.
*Mimaki genuine media "Mini Jumbo Roll Mimaki Vision™Jet-X Mini-162" (Supplied by Neenah Coldenhove) Specifications: width 1,620mm, roll length 2,500m, basis weight 57g/m²

---

---

2. Mimaki print core technology for stable operation and stable image quality

---

Stable operation by new conveyance mechanism with renewed conveyance control

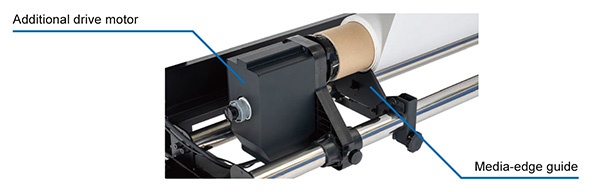

Take-up device and Media edge guide

The motor of the take-up device is mounted on both sides. In conventional models, the drive motor was installed only on one side, but by installing it on both right and left sides, the force applied during winding is equal on both sides and improving the stability of winding.
The newly designed media-edge guide reduces misalignment due to media meandering, that ensures the print for a long time.

---

---

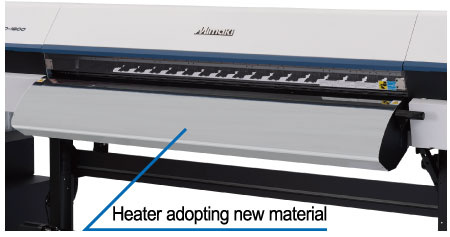

Post-heater

---

Inheritance of Mimaki print core technology supporting stable operation and pursuing beauty in print

---

1. DAS (Dot Adjustment System):
   The printer automatically adjusts and optimizes the dot positioning and feed volume affecting print quality, corresponding to changes in the target media and printing conditions.
2. Waveform Control:
   Sophisticated ink ejection control unique to Mimaki printers ejects near-spherical droplets of ink for sharp expression of text,ruled lines and edges.
3. MAPS4 (Mimaki Advanced Pass System4):
   Automatic optimal pattern selection according to printing conditions reduces banding and unevenness of color by introducing gradations to borders of passes while printing.
4. Variable Dot Control:
   Three different ink drop sizes, including a minimum drop quantity of 4pl, are intermingled to achieve smooth, high-quality prints with minimal graininess.
5. NCU/NRS:
   A sensor detects nozzle conditions and cleans them automatically. When nozzle clogging cannot be resolved, alternate nozzles are used to continue printing without slowing down.

---

3. Enhanced user friendliness

---

New functions for daily maintenance and remote operation have been added to enhance the convenience of operation.

---

Featuring a new cleaning mechanism improving maintainability while reducing downtime, and a V-shaped cutting function improving media transportability.

---

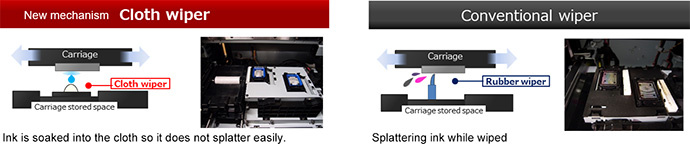

Introduction of cloth wiper
- Improved removal performance for thick adhesive clots on the nozzle surface

Compared with conventional scraping rubber wipers, the new wiping system soaks up unwanted ink droplets, reducing ink splattering on the head station.
By reducing the frequency of maintenance around the head and cap, daily care becomes simple and the machine can always be maintained in optimal condition.

---

---

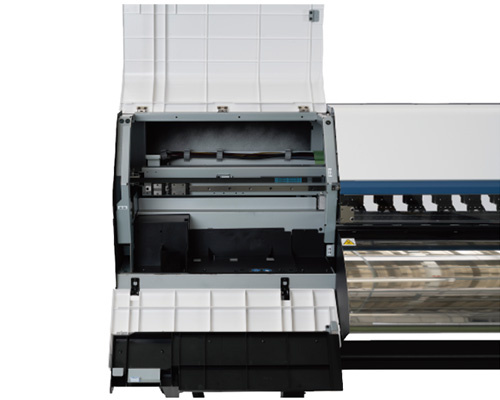

Easy-to-use maintenance space

---

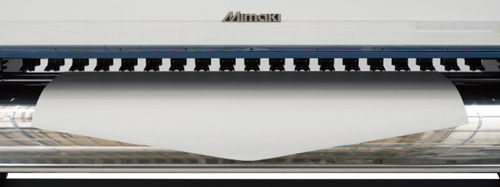

Automatic media cutting "V-shape cutting function"

---

The V-shape cutting function tapers the media into a V-shape before wrapping it around the paper core. You can choose between the conventional cutting method and the V-shape cutting method on the selection screen.
The V-shape allows the center of the media to be precisely attached to the paper core, reducing the potential for human error. Applying V-shaped cuts to unused odd ends of the media for single point of attachment also helps to conserve the media.

---

---

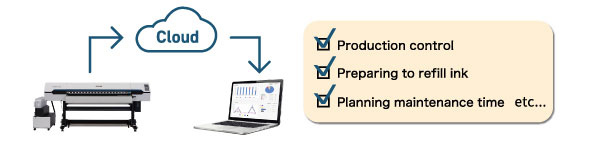

"Mimaki Cloud Technology PICT" achieve smooth and planned operations

---

The printer's operating status and ink usage can be monitored even when the user is away from the printer. It supports planned operations, such as performing other tasks while printing is in progress.
It also enables advanced planning of maintenance schedules and preparation for ink refills.
Mimaki Cloud Technology PICT

---

---

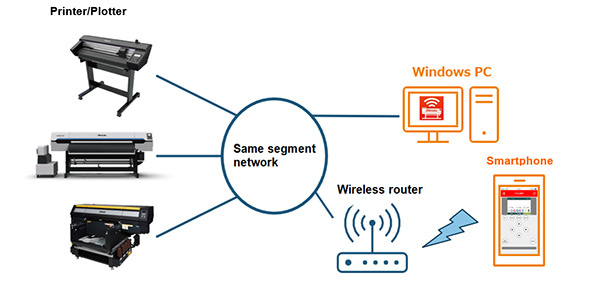

"Mimaki Remote Access (MRA)" enables wireless printer operation.

---

Enables you to check the status of your machine remotely from a smartphone or PC.
This allows you to operate the unit and the panel from a distance, making the work more efficient.
Mimaki Remote Access

---

---

4. Mimaki "Sb411", high quality sublimation transfer ink with a proven track record

---

Software

---

TxLink5 Lite or RasterLink7 is bundled according to user's request.

*RasterLink7 supports using Violet, Orange and Flouroscent color ink as spot color. For using special colors as process color, please select TxLink5.

---

---

---
